PQ3100 Power Quality Analyzer

 โพสต์เมื่อ : 29 เม.ย 2564 เวลา 5:27 น.
allmeasure1
PQ3100 Power Quality Analyzer
The PQ3100 is a comprehensive but easy-to-use power quality analyzer for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues.
Key Features
  • Record data including voltage, current, power, harmonics, and flicker simultaneously along a single time axis
  • Measure up to 6000A AC
  • Capture all power anomalies, including instantaneous outages, voltage drops, and frequency fluctuations, while simultaneously recording trend data
  • Quick Set: Easy-to-understand on-screen guide for measurement procedures
  • Bundled PQ ONE application software makes it easy to create reports
  • Record waveforms for up to 1 second before and 10 seconds after an anomaly occurs
  • Accurately measure DC currents over extended periods of time (with an AC/DC auto-zero current sensor)
  • Directly supply power to connected current sensors
  • Send measured values to HIOKI data loggers using a Bluetooth® wireless technology compatible adapter (LR8410 Link-compatible products), Ver. 2.0 and later
Value Kits

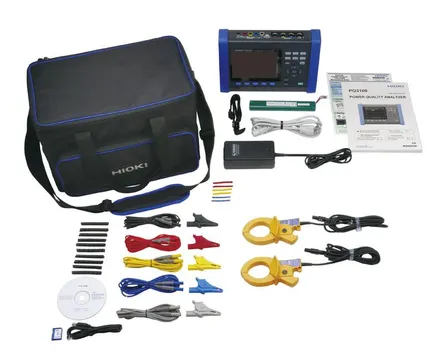

PQ3100-91
      Order Code PQ3100-91
      Kit contents:
      PQ3100 Main Unit
      CT7136 AC Current Sensor (600A) ×2
      Z4001 SD Memory Card 2GB
      C1009 Carrying Case


PQ3100-92,PQ3198-92
      Order Code PQ3100-92
      Kit contents:
      PQ3100 Main Unit
      CT7136 AC Current Sensor (600A) ×4
      Z4001 SD Memory Card 2GB
      C1009 Carrying Case


PQ3100-94,PQ3198-94
      Order Code PQ3100-94
      Kit contents:
      PQ3100 Main Unit
      CT7045 AC Flexible Current Sensor (6000A) ×4
      Z4001 SD Memory Card 2GB
      C1009 Carrying Case

Download Catalog
